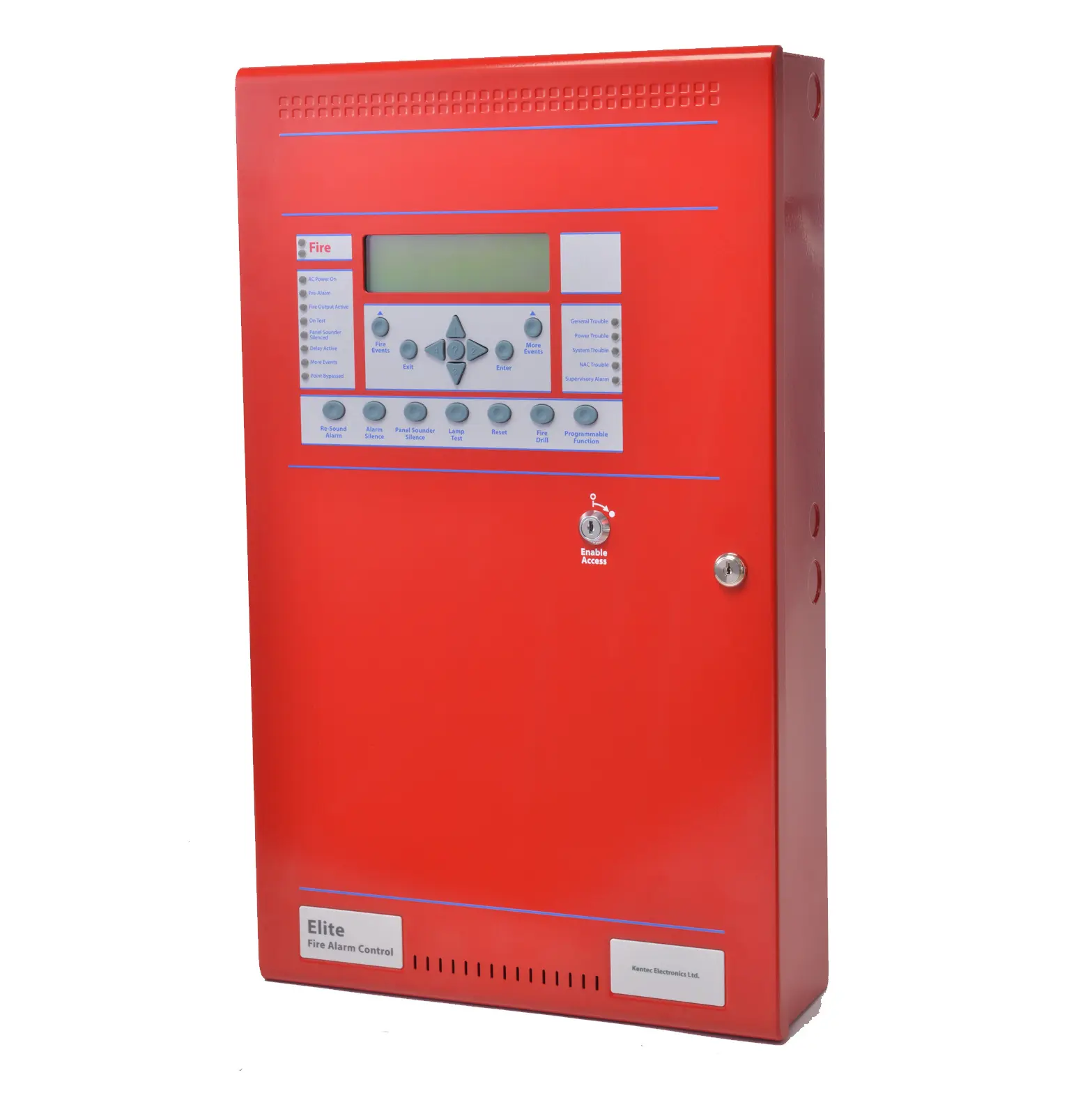

The Elite VF1480 analog addressable FACP with networked releasing, supports 2 or 4 SLC loops for a total of 500 primary points and up to 800 points using subpoints. SLC loop communications uses standardtwisted pair cabling, shielded cable is not necessary.
UL 864 9th Edition listed
| Primary AC |
120VAC @ 2 Amps 60hz (OPtional 240 VAC 50hz) |
|---|---|
| Output DC |
24VDC @ 4 Amps |
| Power Supply |
5.25 Amp regulated and intergrated |
| Charger Current |
1.25 Amps Max |
| Display |
8 line x 40 character LCD (320 characters total) |
| Zones |
500 Zones per network |
| SLC Loops |
2 or 4 (Class A or B) |
| Devices perloop |
126 sensors & modules (800 addresses + sub-addresses max. per panel) |
| NAC Outputs |
(4) 1.6 Amp @ 24VDC (class B) |
| Relay Outputs |
(5) Form C 1 Amp @ 30VDC |
| Voltage Output |
(3) 500mA @ 24VDC, reverse polarity supervised |
| Aux Power |
500mA @ 24VDC |
| Aux Inputs |
(3) digital pull downs |
